A recent excavation near the Red River in downtown Shreveport ran into trouble at 22 feet. The contractor hit saturated alluvium, and without a properly designed tieback system, the shoring started to deflect. That kind of surprise is common here. The city sits on a complex mix of Quaternary alluvium, stiff Yazoo clay, and loose sands that challenge conventional earth retention. For a 12-story mixed-use project on Travis Street, the project team specified a combination of active prestressed anchors and passive ground nails to manage both lateral loads and settlement concerns. Active/passive anchor design isn't just about holding back soil — it's about understanding how Red River terrace deposits behave under load and how seasonal moisture swings in northwest Louisiana affect long-term performance. We incorporate those local variables into every load-transfer analysis, often supplementing with in-situ data from CPT testing to refine the bond zone length in sandy strata.
A properly designed active anchor doesn't just resist movement — it actively compresses the soil mass, changing the stress state behind the wall.
Process and scope
Site-specific factors
The transition zone between the stiff, overconsolidated Yazoo clay and the underlying Red River alluvium creates a distinct risk profile for anchor design in Shreveport. Summer thunderstorms — the city averages over 50 inches of rain annually — can saturate the upper sand lenses and temporarily double the lateral pressure on a retaining structure. If passive anchors in the clay don't extend well past the moisture-sensitive zone, the entire block can lose capacity after a heavy July downpour. Undetected sand seams within the Yazoo also act as preferential flow paths for groundwater, corroding unprotected steel tendons within a few years. The design must account for this by specifying Class I corrosion protection on any permanent anchor within 10 vertical feet of a mapped sand layer, and by running a seismic refraction survey along the wall alignment to catch hidden channels that the original boring logs might have missed.
Standards used
IBC 2021 Chapter 18 – Soils and Foundations, ASCE 7-22 – Minimum Design Loads for Buildings, PTI DC35.1-14 – Recommendations for Prestressed Rock and Soil Anchors, ASTM A416 – Strand, Seven-Wire Steel for Prestressed Concrete, AASHTO LRFD Bridge Design Specifications 10th Ed.
Complementary services
Permanent active anchor systems

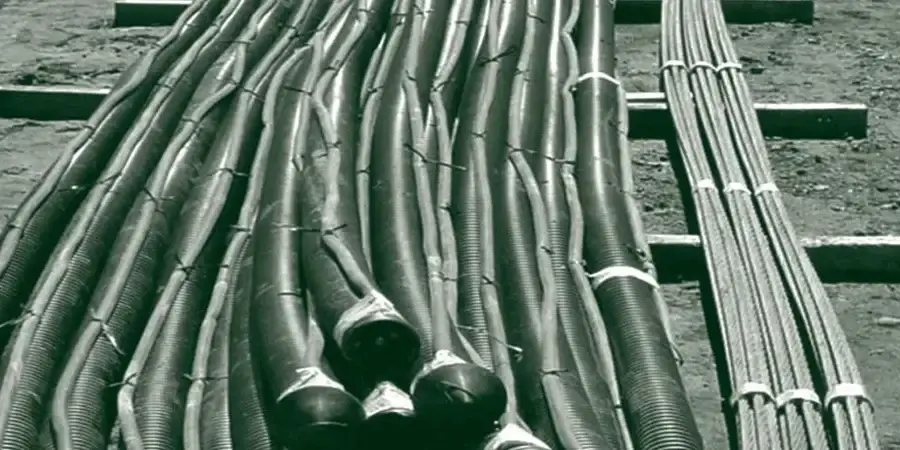

For deep basements, floodwall tie-downs, and bridge abutments along the Red River. We design multi-strand tendons with double corrosion protection, bonded into the Yazoo formation or deeper sand units, and proof-tested to 133% of the design lock-off load per PTI DC35.1.
Temporary passive anchor and soil nail systems
For short-term excavation support in commercial developments. Passive grouted bars are installed without prestressing, relying on soil deformation to mobilize resistance. We specify sacrificial corrosion allowance and staged testing to confirm bond stress in the local alluvium.
Typical parameters
FAQ
What governs the bond length for an active anchor installed in Shreveport's Yazoo clay?
Bond length depends on the undrained shear strength profile from the site investigation and the required lock-off load. In the Yazoo clay — which typically shows 1,500 to 2,500 psf undrained shear strength — we design bond zones of 12 to 18 feet minimum. The final length is confirmed by a sacrificial verification test on-site, measuring load transfer at the grout-soil interface before production anchors are installed.
How much does active/passive anchor design cost for a typical Shreveport retaining wall?
For a standard anchored wall project in Shreveport, engineering design works typically range from US$1,000 to US$4,090, depending on wall height, anchor spacing, and the number of load test verifications required by the IBC. A 30-foot-high wall with multiple anchor rows will be at the upper end due to additional analysis cycles and coordination with the contractor's means and methods.
Is a proof test required for passive anchors under the IBC?
Yes. IBC Section 1810.3.3 mandates that every anchor — active or passive — be load tested to at least 1.5 times the design load unless otherwise specified by the registered design professional. For passive anchors, we typically specify a creep test protocol where the tendon is held for 10 minutes at test load, and the total movement during that period must not exceed 2 mm to confirm that the bond zone is behaving elastically.
